德
国巴斯夫PA66 A3WG7物性表：
| Physical |
Nominal Value
|
Unit
|
Test Method
|
|
Density
|
1.41
|
g/cm3
|
ISO 1183 |
|
Water Absorption
|
ISO 62 | ||
|
Saturation, 23°C
|
5.0
|
%
|
|
|
Equilibrium, 23°C, 50% RH
|
1.6
|
%
|
| Mechanical |
Nominal Value
|
Unit
|
Test Method
|
|
Tensile Modulus (23°C)
|
11500
|
MPa
|
ISO 527-1 |
|
Tensile Stress (Break, 23°C)
|
200
|
MPa
|
ISO 527-2 |
|
Tensile Strain (Break, 23°C)
|
2.5
|
%
|
ISO 527-2 |
|
Flexural Modulus (23°C)
|
10000
|
MPa
|
ISO 178 |
| Impact |
Nominal Value
|
Unit
|
Test Method
|
|
Charpy Notched Impact Strength (23°C)
|
11
|
kJ/m2
|
ISO 179 |
|
Notched Izod Impact Strength (23°C)
|
12
|
kJ/m2
|
ISO 180 |
| Thermal |
Nominal Value
|
Unit
|
Test Method
|
|
Deflection Temperature Under Load (1.8 MPa, Unannealed)
|
250
|
°C
|
ISO 75-2/A |
|
Melting Temperature (DSC)
|
260
|
°C
|
ISO 3146 |
| Injection |
Nominal Value
|
Unit
|
|
|
Drying Temperature
|
80
|
°C
|
|
|
Drying Time
|
2.0 to 4.0
|
hr
|
|
|
Suggested Max Moisture
|
0.15
|
%
|
|
|
Processing (Melt) Temp
|
280 to 305
|
°C
|
|
|
Mold Temperature
|
80 to 90
|
°C
|
|
|
Injection Pressure
|
3.50 to 12.5
|
MPa
|
|
|
Injection Rate
|
Fast
|
|

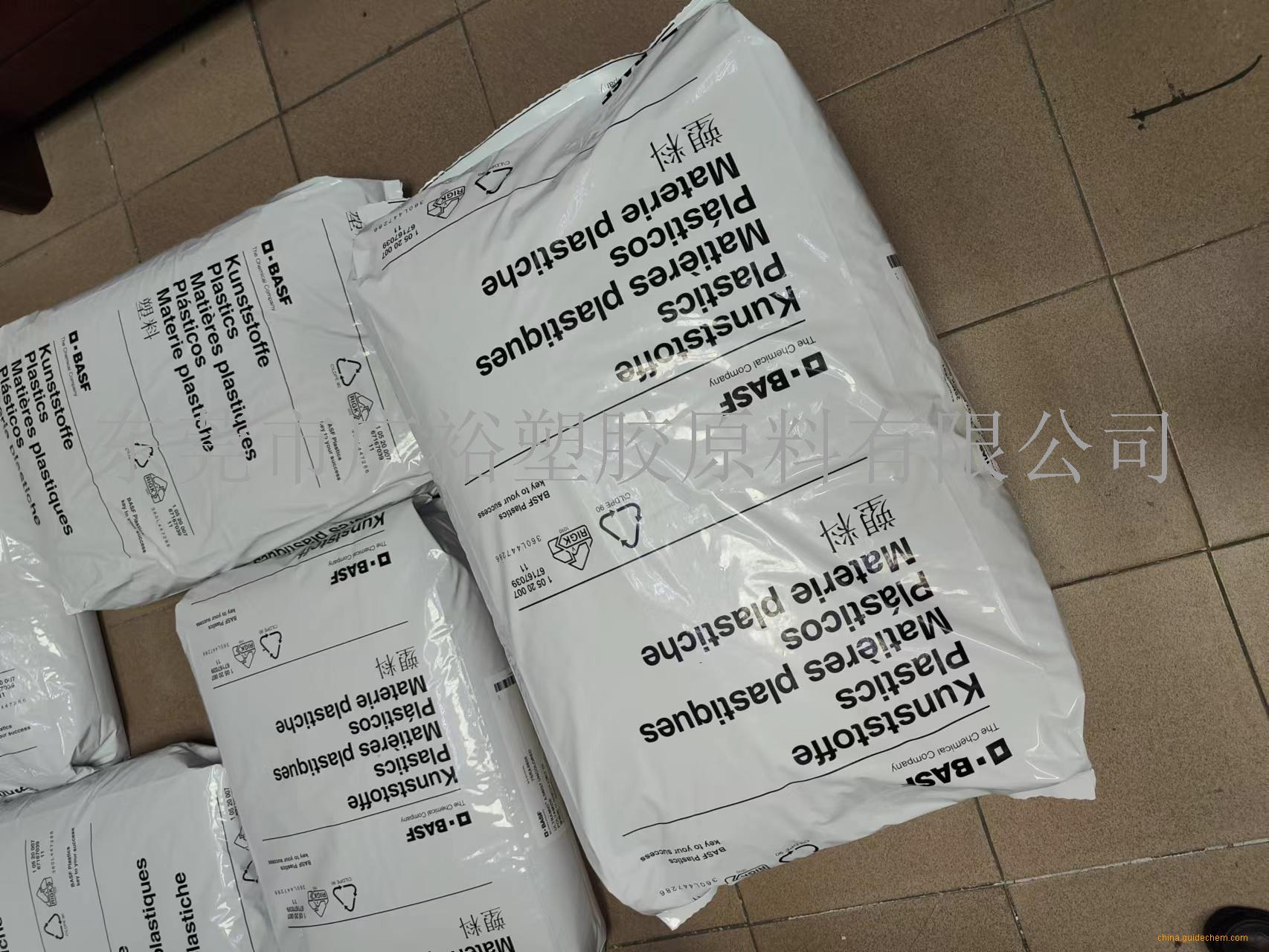

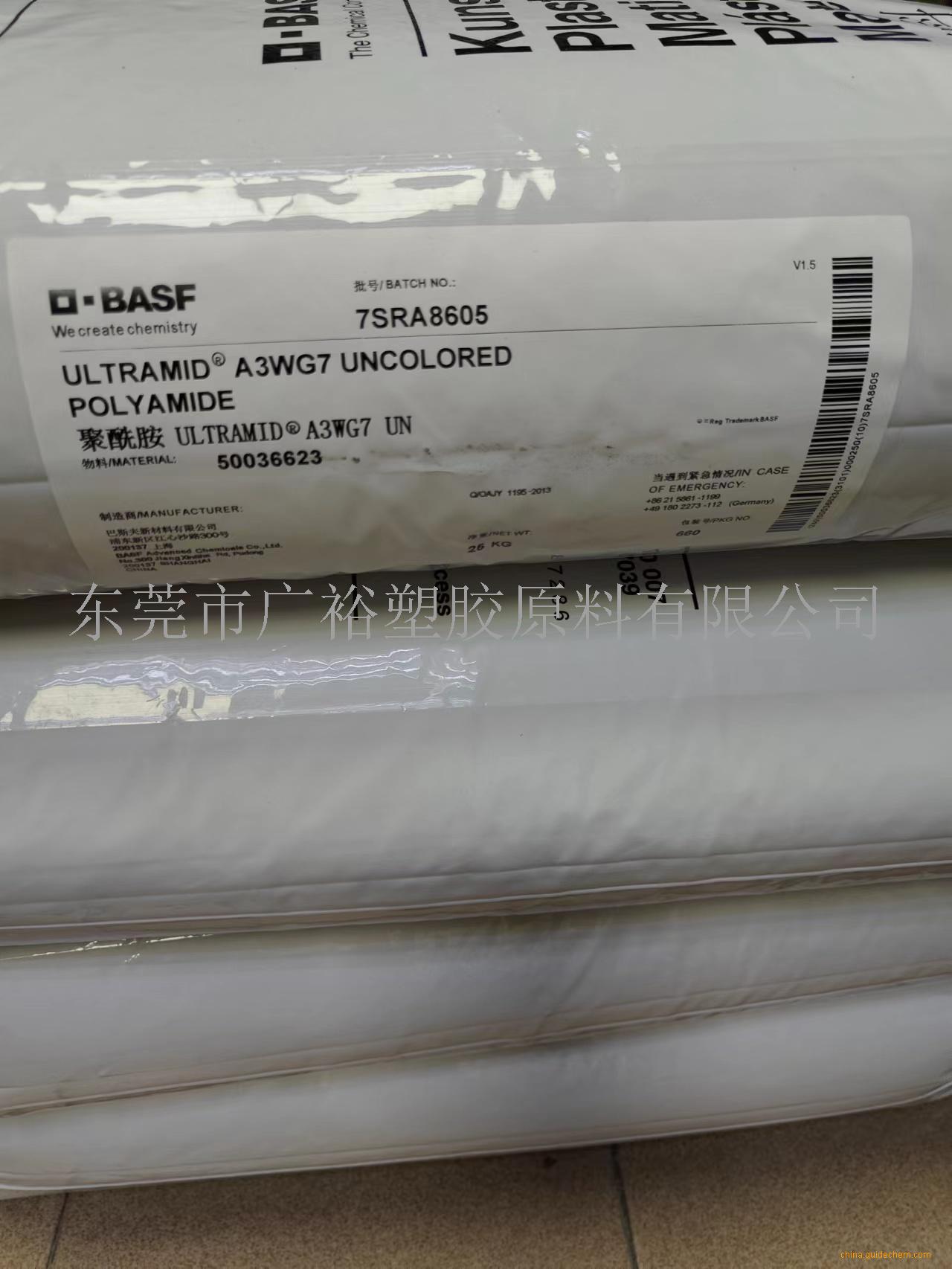

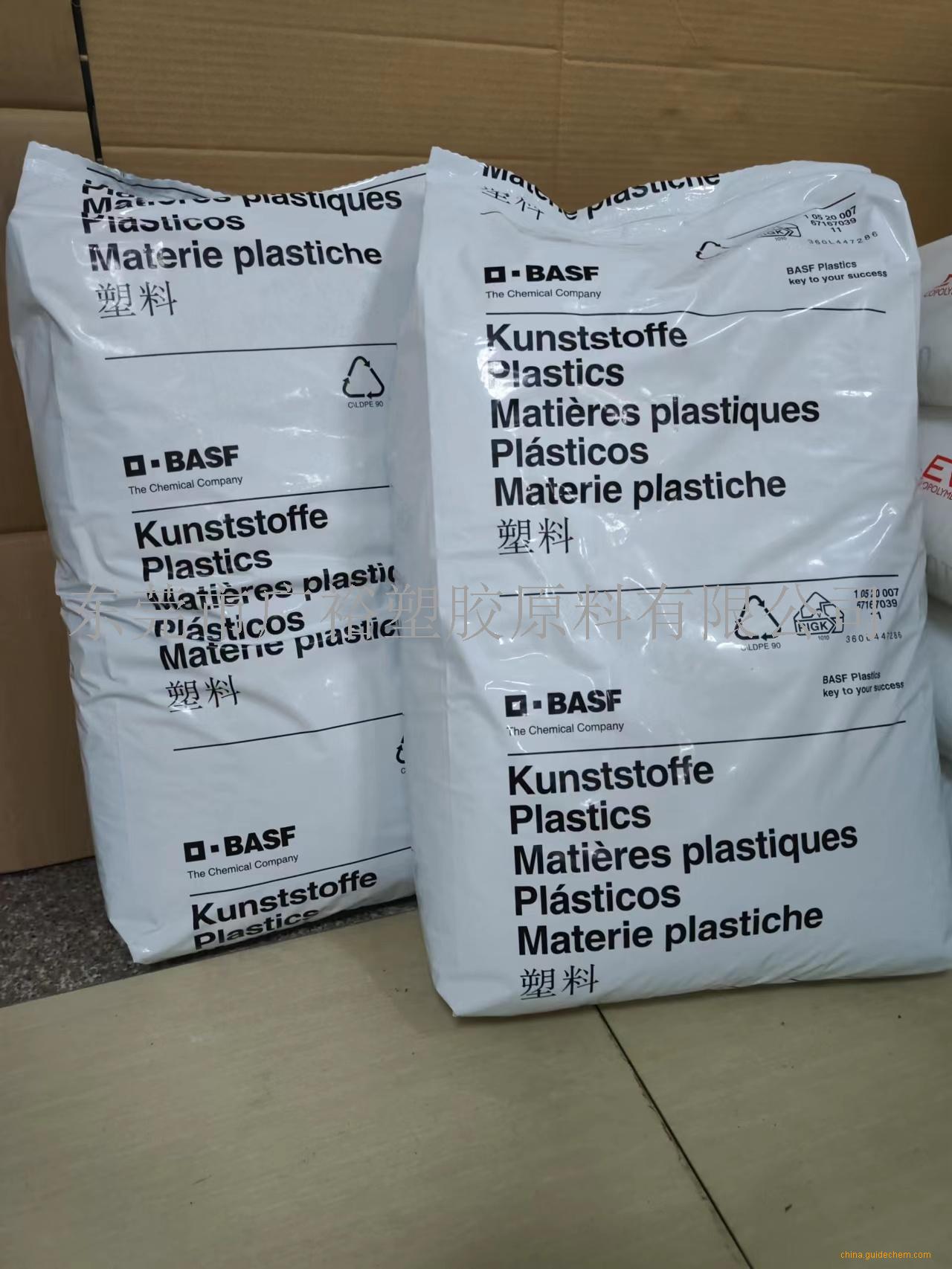

德国巴斯夫PA66 A3WG7产品粒子供参考：
德国巴斯夫PA66 A3WG7应用范围：
选择广裕的理由：
