PA66 C3U德国巴斯夫原料粒子：

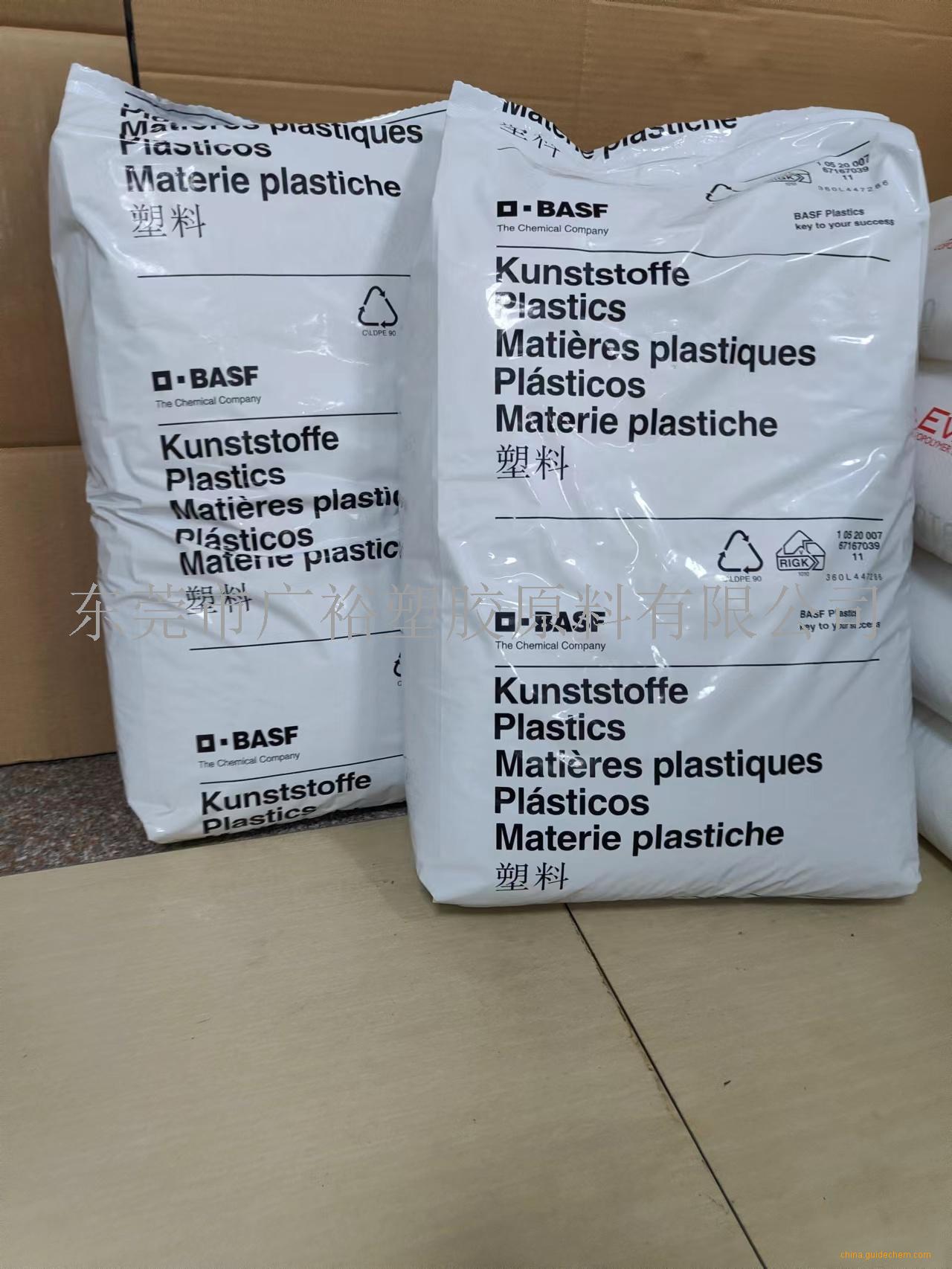

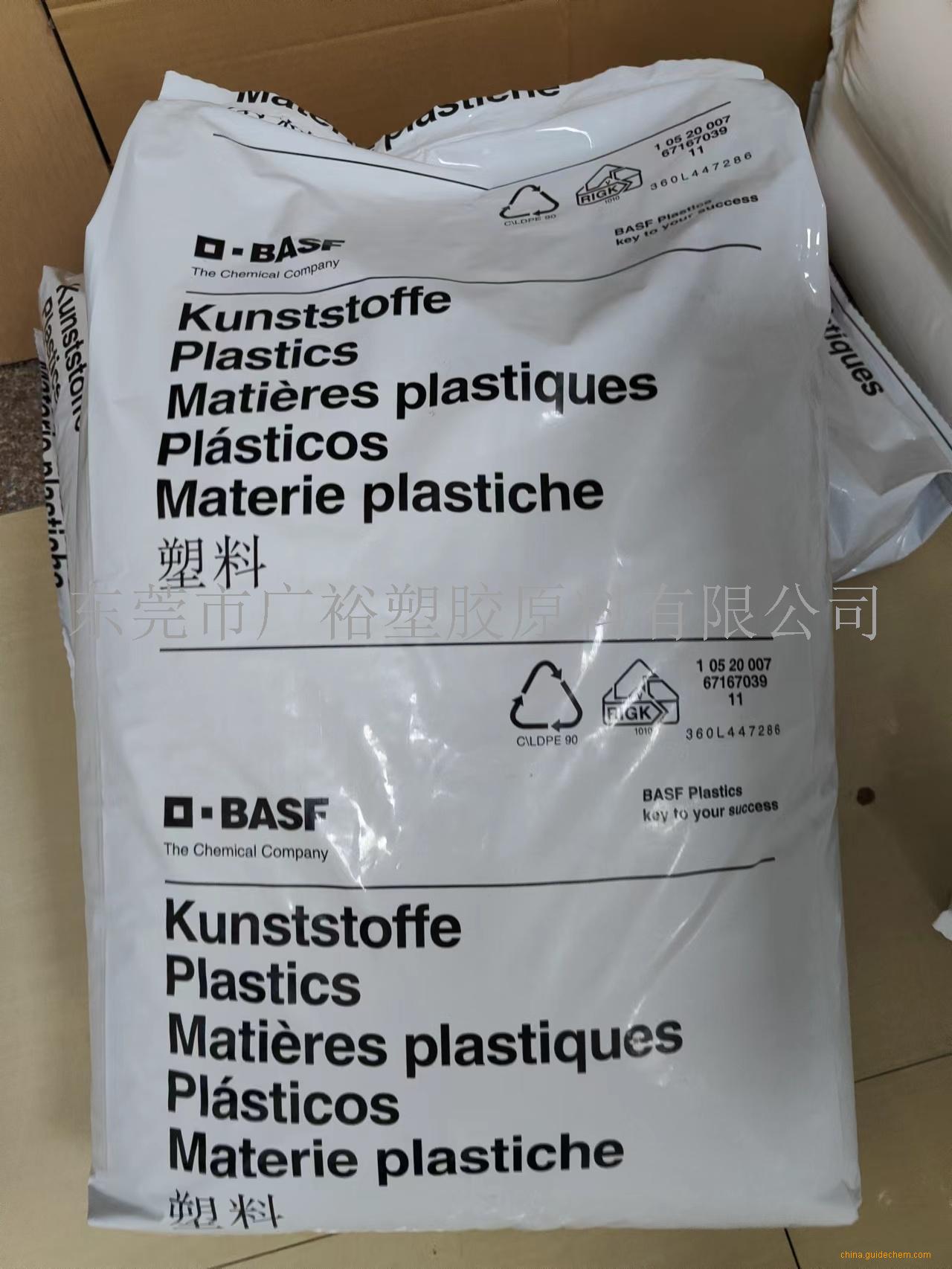

PA66 C3U德国巴斯夫原料包装图片：
PA66 C3U德国巴斯夫原料物性表：
| Physical |
Nominal Value
|
Unit
|
Test Method
|
|
Density
|
1.16
|
g/cm3
|
ISO 1183 |
|
Water Absorption
|
ISO 62 | ||
|
Saturation, 23°C
|
8.5
|
%
|
|
|
Equilibrium, 23°C, 50% RH
|
2.9
|
%
|
| Mechanical |
Nominal Value
|
Unit
|
Test Method
|
|
Tensile Modulus (23°C)
|
3770
|
MPa
|
ISO 527-1 |
|
Tensile Stress (Yield, 23°C)
|
84.0
|
MPa
|
ISO 527-2 |
|
Tensile Strain (Yield, 23°C)
|
3.7
|
%
|
ISO 527-2 |
| Impact |
Nominal Value
|
Unit
|
Test Method
|
|
Charpy Unnotched Impact Strength (23°C)
|
69
|
kJ/m2
|
ISO 179 |
| Thermal |
Nominal Value
|
Unit
|
Test Method
|
|
Deflection Temperature Under Load (1.8 MPa, Unannealed)
|
68.0
|
°C
|
ISO 75-2/A |
|
Melting Temperature (DSC)
|
243
|
°C
|
ISO 3146 |
|
RTI Elec
|
UL 746B | ||
|
0.38 mm
|
110
|
°C
|
|
|
0.75 mm
|
120
|
°C
|
|
|
1.5 mm
|
120
|
°C
|
|
|
3.0 mm
|
120
|
°C
|
|
|
RTI Imp
|
UL 746B | ||
|
0.38 mm
|
65.0
|
°C
|
|
|
0.75 mm
|
105
|
°C
|
|
|
1.5 mm
|
105
|
°C
|
|
|
3.0 mm
|
105
|
°C
|
|
|
RTI Str
|
UL 746B | ||
|
0.38 mm
|
65.0
|
°C
|
|
|
0.75 mm
|
115
|
°C
|
|
|
1.5 mm
|
120
|
°C
|
|
|
3.0 mm
|
120
|
°C
|
| Electrical |
Nominal Value
|
Unit
|
Test Method
|
|
Comparative Tracking Index
|
600
|
V
|
IEC 60112 |
| Flammability |
Nominal Value
|
Unit
|
Test Method
|
|
Flame Rating
|
UL 94 | ||
|
0.38 mm
|
V-0
|
|
|
|
0.75 mm
|
V-0
|
|
|
|
1.5 mm
|
V-0
|
|
|
|
3.0 mm
|
V-0
|
|
PA66 C3U德国巴斯夫应用领域：
