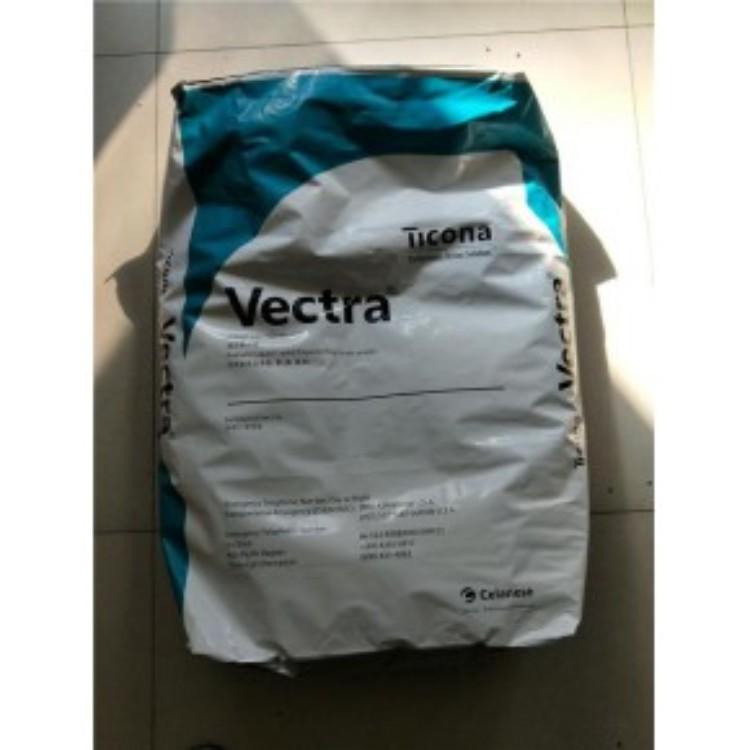

美国塞拉尼斯LCP 5130L物性表：
MECHANICAL
Nominal Value
Unit
Test Method
Tensile Modulus
10000
MPa
ISO 527-1
Tensile Stress (Break)
145
MPa
ISO 527-2/5
Tensile Strain (Break)
3.5
%
ISO 527-2/5
Flexural Modulus (23°C)
11000
MPa
ISO 178
Flexural Stress (23°C)
170
MPa
ISO 178
THERMAL
Nominal Value
Unit
Test Method
Deflection Temperature Under Load (1.8 MPa, Unannealed)
275
°C
ISO 75-2/A
Melting Temperature 4
320
°C
ISO 11357-3
ELECTRICAL
Nominal Value
Unit
Test Method
Dielectric Constant (1 MHz)
3.30
IEC 60250
Dissipation Factor (1 MHz)
8.0E-3
IEC 60250
FLAMMABILITY
Nominal Value
Unit
Test Method
Flame Rating (0.8 mm)
V-0
UL 94
INJECTION
Nominal Value
Unit
Drying Temperature
150
°C
Drying Time
3.0
hr
Suggested Max Moisture
0.010
%
Hopper Temperature
20 to 30
°C
Injection Feed Temperature
40 to 60
°C
Rear Temperature
320 to 330
°C
Middle Temperature
335 to 345
°C
Front Temperature
335 to 345
°C
Injection Zone 4 Temperature
335 to 345
°C
Nozzle Temperature
335 to 345
°C
Processing (Melt) Temp
325 to 345
°C
Mold Temperature
80 to 120
°C
Back Pressure
< 3.00
MPa
